Managed HBase Dependencies

Managed dependencies let a new HBase service consume an existing managed HDFS service and/or ZooKeeper ensemble while keeping its own cluster, hosts and lifecycle. They are optional: independent clusters can continue using their own local HDFS and ZooKeeper.

Read the architecture and evidence boundary before planning a shared deployment. The current consumer is HBase, and the implemented dependency types are HDFS and ZOOKEEPER; this is not a general-purpose service federation or arbitrary external-endpoint feature.

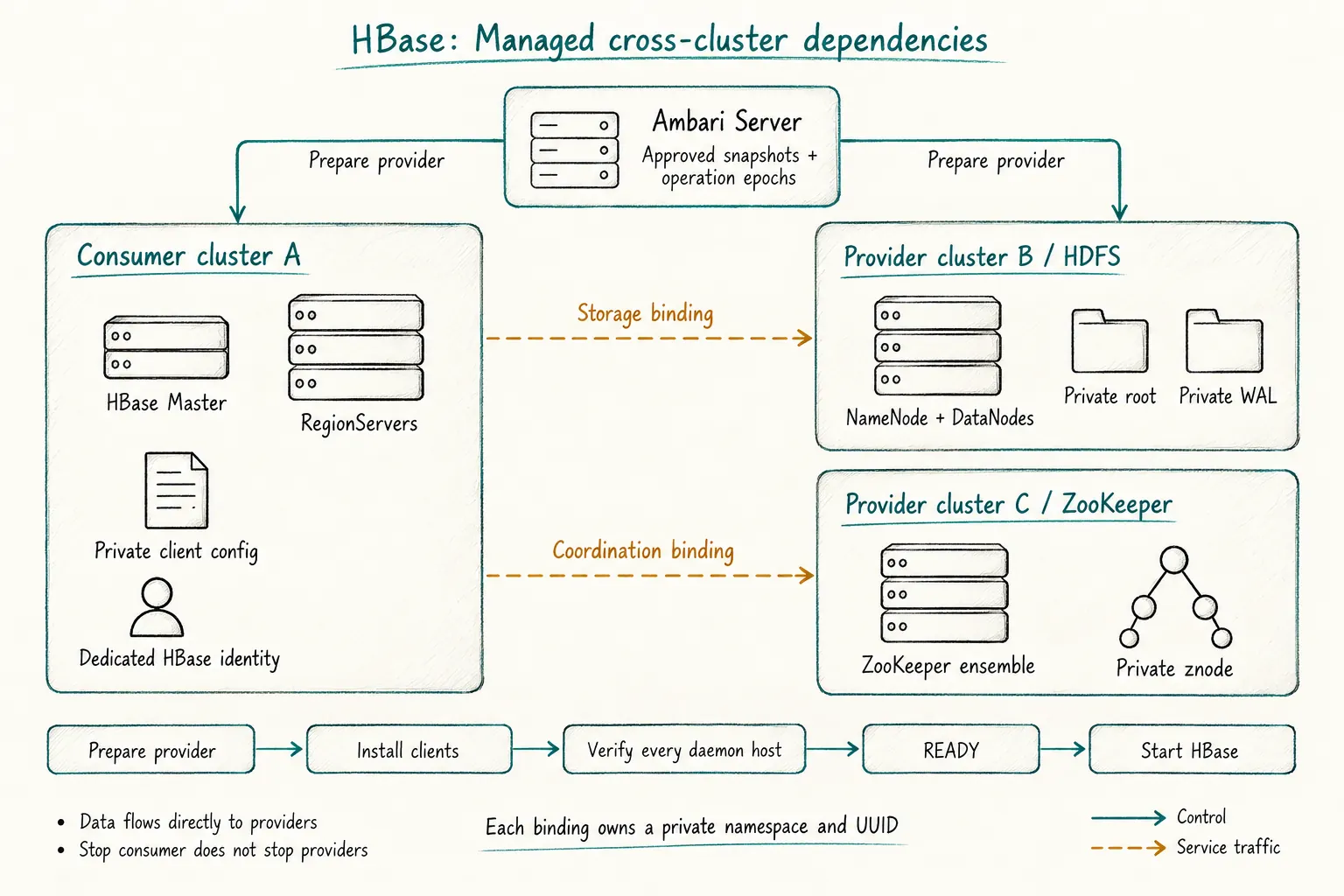

Topology And Ownership

The diagram deliberately places HDFS and ZooKeeper in different provider clusters. They can also be in the same provider cluster. Each selection has its own binding and readiness checks; review the complete plan before provisioning. The consumer's hosts remain members of its own cluster.

Choice	Effect
Local HDFS and ZooKeeper	Conventional independent HBase deployment; no managed cross-cluster binding is needed.
Managed HDFS, local ZooKeeper	HBase storage uses the selected provider; coordination stays local.
Local HDFS, managed ZooKeeper	Storage stays local; coordination uses the selected provider.
Managed HDFS and ZooKeeper	Two bindings, each with its own provider identity, private namespace and readiness evidence.

Ambari coordinates approval, preparation and verification. HBase communicates directly with provider daemons for storage and coordination; data does not flow through Ambari Server. A shared provider introduces shared availability and maintenance dependencies.

Compatibility And Permissions

Check	Current contract
Consumer lifecycle	A draft/new service plan or fresh HBase service in initial state. Converting a data-bearing local HBase deployment is not supported.
Stack and versions	Consumer and provider use active BIGTOP 3.3.0 repositories with nonempty, equal resolved version metadata and compatible client features. A matching display version alone is insufficient.
Provider readiness	The selected service is installed and healthy before snapshot approval.
HDFS features	Federation and Observer NameNode clients are rejected by the managed binding validator. Do not infer support from their availability elsewhere in Ambari.
Security	Both sides are unsecured, or satisfy the dedicated same-realm Kerberos checks. Mixed secure/insecure and cross-realm bindings are rejected.
Network	Every current HBase daemon host can resolve and reach the configured NameNode RPC, DataNode data-transfer and ZooKeeper endpoints. Use the actual provider configuration, not assumed default ports.
Consumer authority	Modification and identity planning require SERVICE.MODIFY_CONFIGS and SERVICE.SET_SERVICE_USERS_GROUPS; Add Service additionally requires SERVICE.ADD_DELETE_SERVICES.
Provider authority	Discovery requires service-view authorization; preparation/mutation requires SERVICE.RUN_CUSTOM_COMMAND on the provider cluster. Consumer-only administration is insufficient.

Installer drafts require global cluster-creation authority. Installation, Start and service checks also retain their ordinary operation permissions; the table lists dependency-specific prerequisites, not an exhaustive role grant recipe.

The initial secure path adds HBase to an already Kerberized consumer cluster. A new cluster installation does not automatically establish a usable secure dependency plan. Same-realm support includes identity mapping, provider policy proof, credential issuance and verification; the existence of source support does not close the real-KDC acceptance gap.

Choose And Review Providers

1. Start a new cluster installation or open Add Service in the intended consumer cluster and select HBase.
2. In service selection, review the separate Storage and ZooKeeper choices. Keep the local default for any dependency that should remain local.
3. For a managed dependency, open the authorized provider list. Verify the provider cluster, service, compatibility result and any returned reasons before selecting it.
4. Save the selection and preview the plan. The wizard can release local daemon services selected solely to satisfy HBase, but retains services explicitly selected or required by another local consumer. Client packages remain necessary.
5. At configuration, inspect the managed client values and edit ordinary HBase properties as appropriate. Change provider-owned values through provider selection/review, not by copying complete provider configurations.
6. At Review, verify consumer identity, provider ownership, private paths, host placement and the current compatibility result. A changed provider or topology invalidates the old preview.
7. Submit the reviewed plan, then follow the Server-owned deployment. Do not start HBase manually while dependency preparation or verification is incomplete.

Adding an unrelated service beside an existing HBase deployment preserves its dependency ownership; it does not offer a migration opportunity. Unsupported choices should be resolved before provisioning.

Private Configuration And Data Paths

For each binding, the Server derives private paths from its UUID:

HDFS binding:
  hdfs://<provider-authority>/apps/ambari-managed/hbase/<hdfs-binding-id>/root
  hdfs://<provider-authority>/apps/ambari-managed/hbase/<hdfs-binding-id>/wal

ZooKeeper binding:
  /ambari-managed-hbase/<zk-binding-id>/hbase

The HDFS and ZooKeeper binding IDs are independent. Root and WAL paths are distinct; the ZooKeeper binding has a private container and coordination child. Ambari also maintains ownership/fencing records. Do not manually delete those records or reuse the reserved paths for another application.

Only allowlisted client settings enter the approved snapshot. The HBase overlay does not overwrite an unrelated local service's Hadoop configuration. Provider administrative principals and keytabs are not copied to consumers. Read the returned namespace and planned identity instead of inventing an HBase user or path convention.

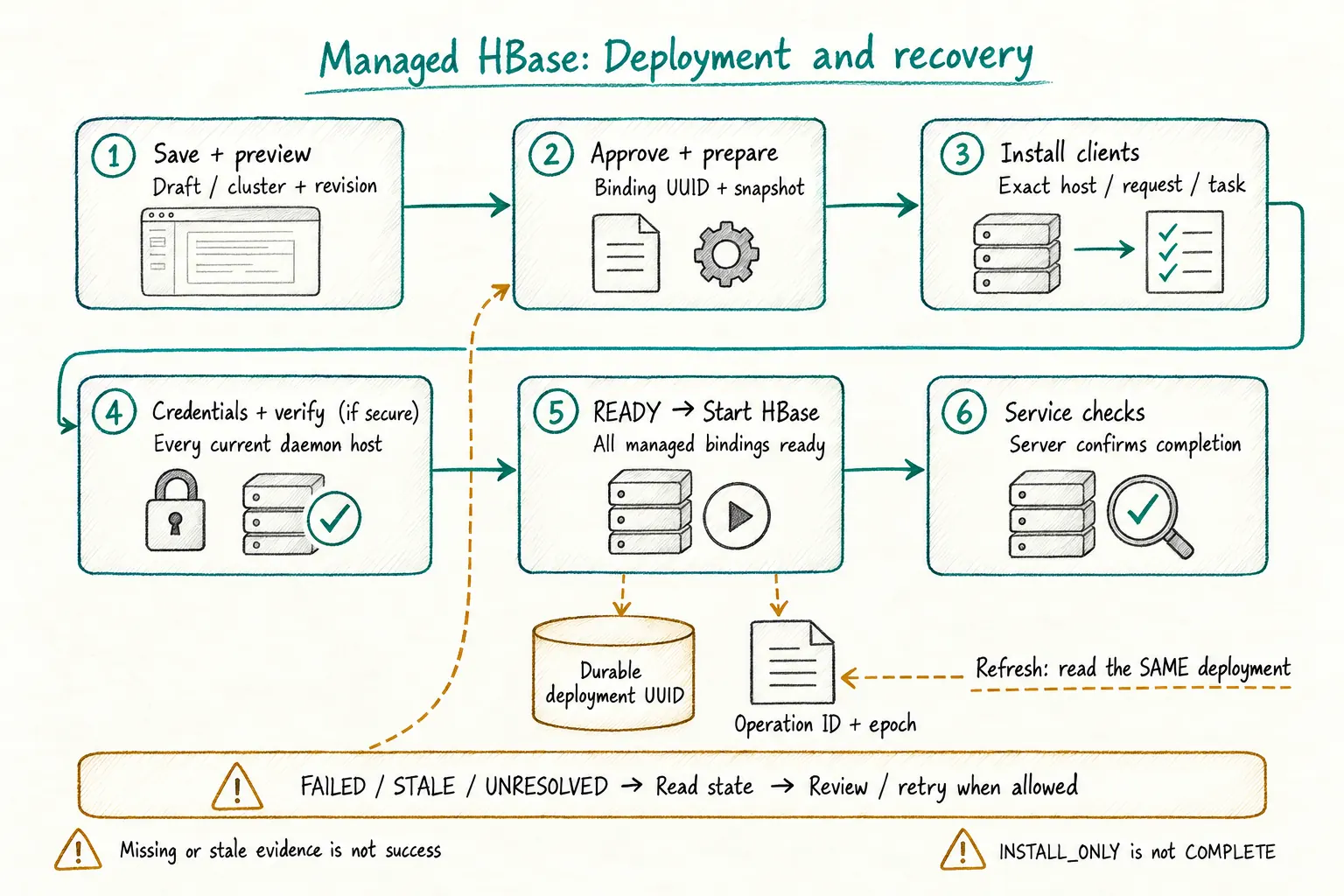

Deployment Sequence

Stage	What must be established
Save and preview	Exact draft/service-plan revision, selected providers and current fingerprints.
Approve and prepare	Persisted binding snapshot; provider preparation for its exact namespace and identity.
Install/configure	Approved clients and private configuration on the intended consumer hosts; durable request/task association.
Credentials and verification	Credential completion when required; NameNode RPC plus DataNode write/read checks, ZooKeeper session/private-znode checks, and current client/identity evidence.
Ready and Start	All managed bindings ready and evidence valid for every current HBase daemon host.
Service checks and completion	Exact Start and service-check request/task results associated with the same durable deployment.

READY on one binding does not imply deployment completion. Inspect the deployment's completed field, current request/task results and operation identity. INSTALL_ONLY is a deliberate branch and does not mean COMPLETE.

Updates, Maintenance And Detach

Open HBase's Dependencies tab, or use the dependency link in the Services directory. The page shows ownership, phase, desired/applied snapshot versions, readiness and permitted next actions.

For provider configuration drift, use Review changes, inspect the proposed snapshot, and apply the reviewed changes when allowed. A concurrency conflict requires a new preview. Retry preparation retries the current binding through the supported operation; it must not reuse an unrelated task result.

Before stopping or restarting a provider, review its dependent consumers and confirm the current impact revision. Hidden consumers may appear as an anonymous count when you lack permission to see their names; an empty visible-name list does not imply no impact. Provider deletion is blocked while active bindings remain.

Stop HBase before Detach provider. Detach preserves provider services and stored data, and the detached dependency cannot be used to restart HBase. Detach is not a data migration or data-erasure command. Plan consumer retirement, data retention and any later cleanup explicitly; real detach/retention acceptance remains a qualification item.

Source References

See the snapshot validator, namespace allocation, dependency API client and dependency action UI. Operations and Recovery documents the API read paths, failure codes and recovery decisions.
